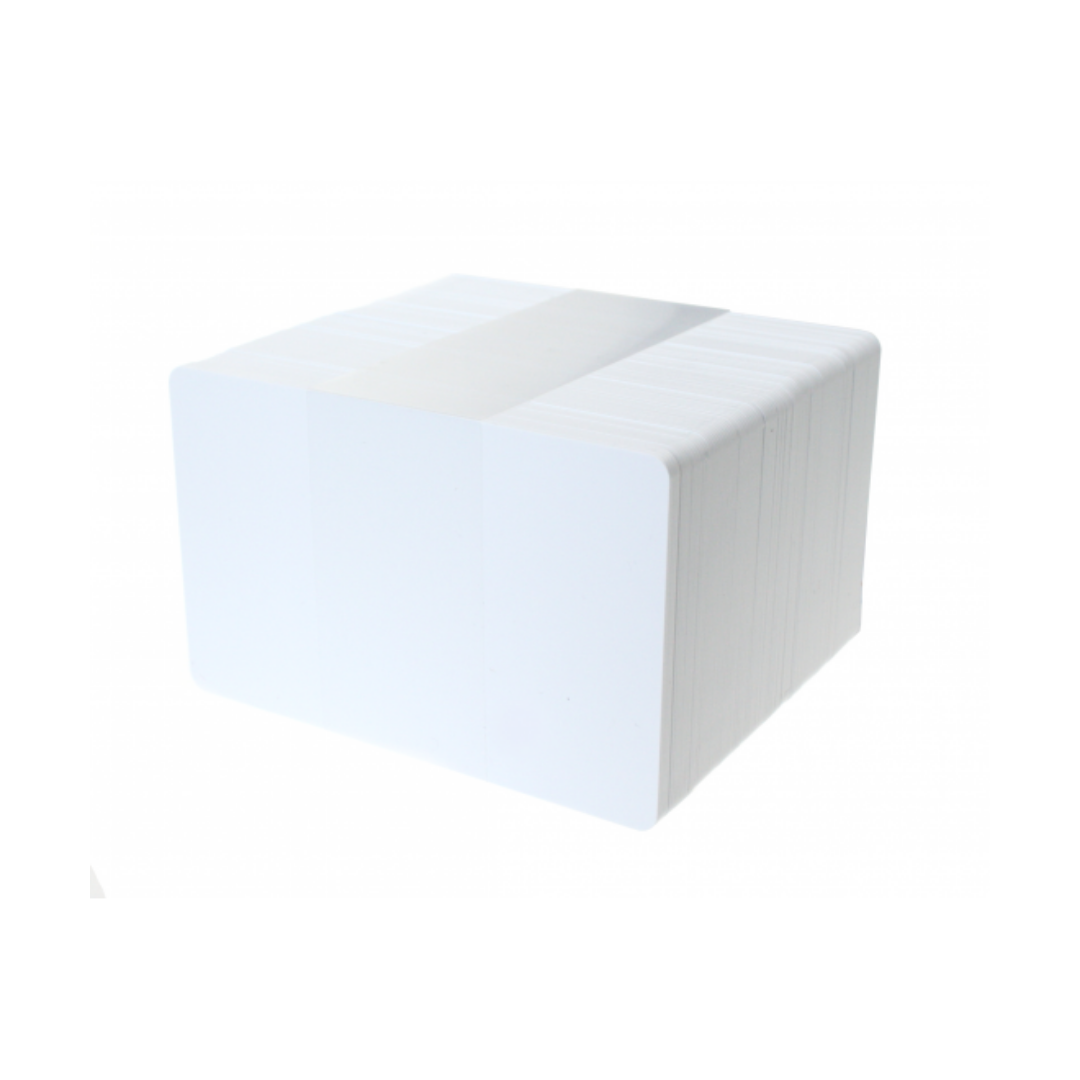

MIFARE® DESFire® EV3 4k card

Plain white ISO-Sized PVC Card, Gloss Finish

NXP Product code: MF3D(H)x3

MIFARE® DESFire® EV3 4k PVC ISO-Sized Cards have PVC core and overlay with gloss finish for optimal results when personalising with a standard card printer. MIFARE® DESFire® EV3 4k is the latest version in the DESFire® family that introduced new features along with enhanced performance and improved transaction speed compared to former versions.. This includes Common Criteria EAL5+ such as used in banking. The card is a secure multi-application card for use in transport, physical access control, cashless vending, car-parking, leisure/sports clubs, education, and event venues. It is compliant to ISO/IEC 14443A and uses ISO/IEC 7816-4 commands. This version has a 4k Byte memory with an upgrade to virtually no limitation on the number of new applications with up to 32 files per application.

ISO/IEC 14443A / ISO/IEC 7816 compatibility

USES ISO/IEC 14443-4 transmission protocol

4KB NV-memory

Write endurance >1 000,000 cycles and data retention of  > 25 years

Common Criteria certification: EAL5+ on hardware and software

Flexible file system with up to 28 applications and up to 32 files in each application

Dimensions: 86,00 mm x 54,00 mm x 0,80 mm
